Step-by-Step Shutter Measuring Guide for Perfect Fit
Shutter measuring guide
Struggling to find the perfect shutters for uniquely shaped windows can leave many British homes looking unfinished and feeling less private. Getting a flawless fit with bespoke interior shutters begins with one key step—preparing your tools and clearing the window area. This careful start makes all the difference, helping you achieve the blend of style, privacy, and insulation that only custom shutters offer. Learn how proper preparation sets the stage for seamless measuring and an impeccable final result.
Table of Contents
- Step 1: Prepare Essential Tools And Clear Window Area
- Step 2: Identify Window Shapes And Select Measuring Points
- Step 3: Measure Dimensions Precisely For Bespoke Shutters
- Step 4: Record And Verify Measurements For Accuracy
- Step 5: Submit Measurements For Custom Shutter Fabrication

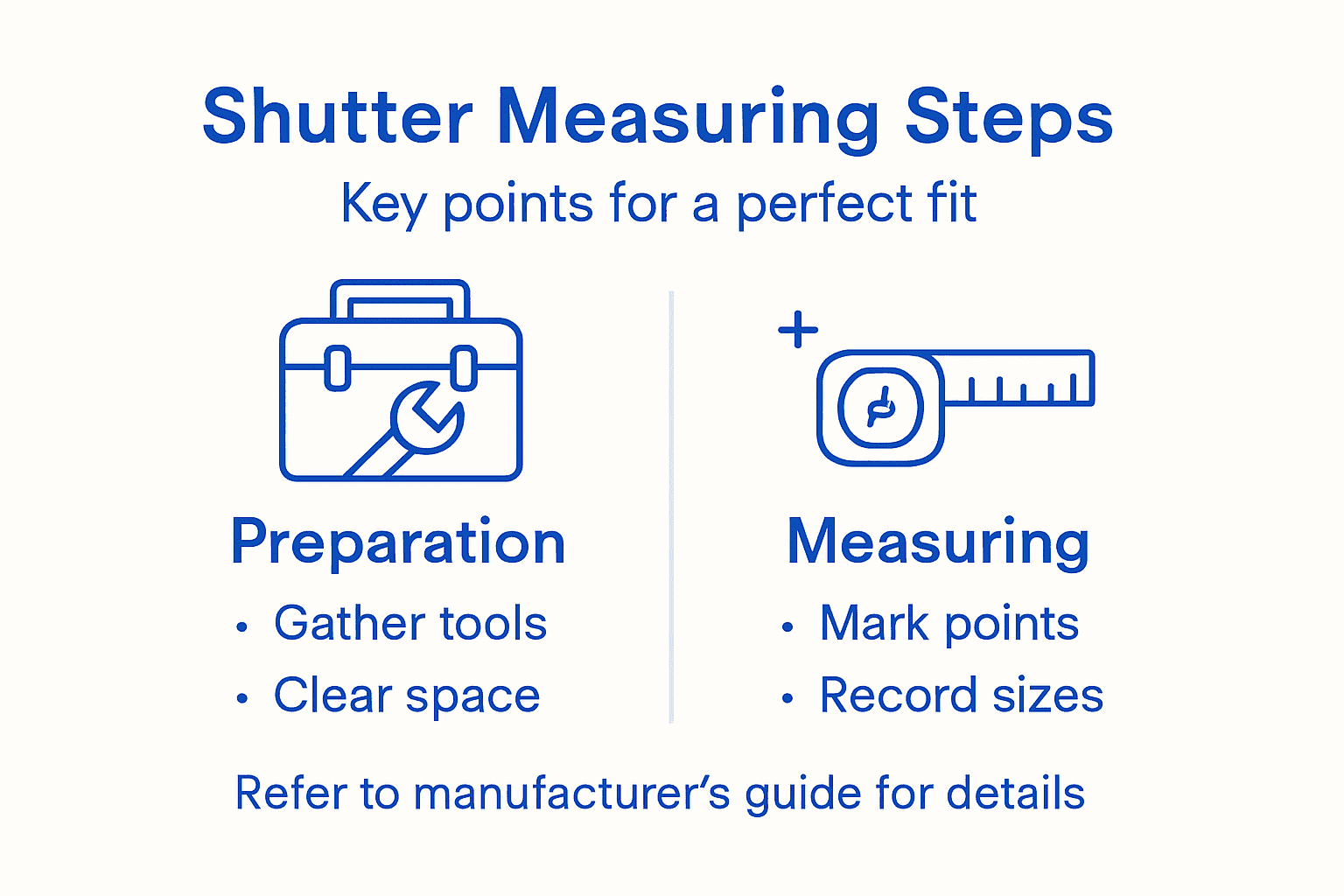

Quick Summary
| Key Insight | Explanation |
|---|---|
| 1. Gather Essential Tools | Assemble a steel tape measure, a pencil, a notepad, and a spirit level to ensure accurate measurements. |
| 2. Clear the Window Area | Remove obstructions, such as curtains and furniture, to avoid measurement inaccuracies around the window frame. |
| 3. Measure Multiple Points | Measure width, height, and depth at multiple points to account for any window irregularities. |
| 4. Record and Verify Carefully | Document each measurement and verify by rechecking to prevent costly errors later. |
| 5. Submit Complete Information | Provide detailed measurements, photographs, and notes during submission for precise custom shutter fabrication. |
Step 1: Prepare essential tools and clear the window area
Before you begin measuring, gather the right tools and clear your space; it makes all the difference. This preparation stage takes just 10-15 minutes but prevents costly measurement errors later.
Start by assembling your measuring toolkit. You’ll need a steel tape measure that extends at least 5 metres, a pencil and notepad for recording measurements, and a step ladder for safe access to higher windows. Many homeowners find that essential shutter installation tools like a spirit level and a smartphone with a notes app simplify the process further. Good lighting is essential—natural daylight works best, but a torch or lamp helps if your window sits in a shaded corner.
Next, clear the entire window area. Remove all curtains, blinds, and any furniture positioned in front of or near the window.
Obstructions hide important architectural details and can lead to inaccurate measurements. The window frame itself should be fully visible, along with any sills, reveals, or architectural features that might affect shutter fitting.
Ensure the area around your window is accessible. Move chairs, side tables, and decorative items away from the window base so you can stand comfortably and reach all points without stretching awkwardly.
If measuring high windows, position your step ladder safely and ensure it’s stable before climbing. Never overreach or lean at awkward angles—a sturdy ladder makes measurement far safer and more accurate.
Clear window areas and proper tools eliminate guesswork from your measurements, ensuring your bespoke shutters fit perfectly first time.
Once your space is prepared and tools are ready, you’re set to take precise measurements that will guarantee a flawless fit.
Pro tip: Take a photograph of the window from directly ahead before you start measuring—this reference image helps you remember the window’s exact proportions and any architectural quirks when recording measurements later.
Step 2: Identify window shapes and select measuring points
Knowing your window type is the foundation of accurate measuring. Different window shapes require different measuring strategies, so take a moment to identify exactly what you’re working with.
Start by recognising your window category. Most homes have standard rectangular casement windows, but you might have bay windows, arched tops, or other architectural styles. Understanding which type you have helps you know where to take measurements.
Below is a comparison of common window shapes and the unique measurement considerations for each:
| Window Shape | Common Features | Measurement Challenges |
|---|---|---|
| Rectangular Casement | Straight edges, uniform frame | Minimal, usually standard points |
| Bay Window | Angled panels, deep reveals | Multiple angles, extra width points |
| Arched Window | Curved top, variable height | Measuring the curve accurately |
| Sash Window | Sliding panels, visible sills | Height may vary, obstruction from sills |
Once you’ve identified your window shape, carefully select your measuring points. You’ll need measurements at three key locations:
- Width at the top, middle, and bottom of the frame
- Height at the left side, centre, and right side of the frame
- Depth of the window reveal (the distance from the outer wall to the inner frame)
For standard rectangular windows, these six points give you complete coverage. For more complex shapes like bays or arches, you’ll need to measure at multiple points along the curves and angles to ensure your bespoke shutters fit perfectly.
Pay attention to any mullions (vertical divisions) or transoms (horizontal divisions) within your window, as these affect how shutters align. Also note any architectural features like mouldings or irregularities around the frame.
When selecting points, always measure inside the window reveal, not the exterior. This is where your shutters will sit, so precision here matters most.
Measuring at multiple points along your window’s width, height, and depth prevents gaps and ensures your shutters fit seamlessly, regardless of window shape.
With your measuring points identified, you’re ready to start recording precise dimensions to ensure a flawless fit. Understanding window frame measurement techniques helps you capture all the details your shutter manufacturer needs.
Pro tip: Mark your measuring points lightly with a pencil before you start, or use masking tape to indicate exactly where you’re measuring from—this ensures consistent, repeatable measurements if you need to double-check any dimensions.
Step 3: Measure dimensions precisely for bespoke shutters
This is where accuracy truly matters. Taking precise measurements now prevents costly errors later and ensures your shutters fit perfectly the first time around.
Start with your width measurements. Using a rigid steel tape measure, record the width at three heights: the top, middle, and bottom of the window reveal. Write each measurement down immediately in millimetres to capture any slight variations across your window’s span.
Next, take your height measurements at three points: the left side, centre, and right side of the frame. Again, use millimetres and record each figure separately. Windows are rarely perfectly uniform, so these multiple points reveal the true shape of your frame.
Measure your recess depth as well. This is the distance from the outer frame edge to the inner wall surface where your shutters will sit. Check this measurement at several points to ensure the depth remains consistent throughout.
Here’s your complete measurement checklist:
- Width at top, middle, and bottom of reveal
- Height at left, centre, and right of reveal
- Recess depth at multiple points
- Any angles, obstructions, or unusual features
- Vertical and horizontal alignment using a spirit level
Double-check every measurement before moving on. Measure a second time to verify accuracy, and if two readings differ, take a third measurement to determine which is correct.
Recording measurements in millimetres and verifying them twice eliminates guesswork and guarantees your bespoke shutters will arrive ready for perfect installation.
When taking window frame measurements for bespoke shutter fit, accuracy at this stage determines everything that follows. You’re essentially creating a blueprint that your shutter manufacturer will use to craft your custom pieces.
Pro tip: Create a simple sketch of your window on paper and label each measurement directly on it, rather than relying solely on a list—this visual reference helps you spot inconsistencies and provides a helpful record to send to your shutter specialist.
Step 4: Record and verify measurements for accuracy
Clear, accurate records are the bridge between your measurements and perfectly fitting shutters. Taking time to document everything properly now saves headaches later.
Record each measurement as you take it, rather than relying on your memory. Use a dedicated notepad or a note-taking app on your smartphone, whichever feels more natural. Include the location of each measurement (top, middle, bottom for width; left, centre, right for height) alongside the actual figure in millimetres.
As you record, note any special features or obstructions you encounter. Document arched windows, sloped sills, radiators beneath the window, or anything else that might affect how shutters install. Taking photographs of these features provides visual backup that words alone cannot capture.
Once you’ve recorded all measurements, start your verification process. Begin by re-measuring your three width points and comparing them to your original notes. If any figure differs significantly, take a third measurement to establish which reading is accurate.
Repeat this verification for your height and depth measurements. Work methodically through each point, cross-checking against your original records.
Here’s your verification checklist:
- Re-measure all width points and compare to the original notes
- Re-measure all height points and compare to the original notes
- Re-measure depth at multiple locations
- Review photographs for any missed details
- Check that measurements are written clearly and legibly
If possible, ask someone else to review your measurements as an extra set of eyes. Accurate measurement recording ensures clear, precise communication with your shutter manufacturer.
Here is a summary of key reasons why precise measurement and verification are critical for bespoke shutters:
| Purpose | Consequence of Inaccuracy | Business Benefit |
|---|---|---|
| Ensuring perfect shutter fit | Gaps, ill-fitting shutters | Smooth installation process |
| Preventing costly remakes | Increased cost, wasted time | Cost-efficient project |
| Aligning with window features | Poor aesthetics, misalignment | Superior appearance |
| Communicating with the manufacturer | Confusing specifications | Streamlined production |
Verification catches errors before they reach your manufacturer, guaranteeing your bespoke shutters arrive precisely engineered for your windows.
Once you’re confident in your measurements, you’re ready to share them with Shutter World for your quotation.
Pro tip: Create two separate copies of your measurements, one to keep and one to submit with your enquiry—this safeguards against loss and gives you a reference point if any questions arise during manufacturing.
Step 5: Submit measurements for custom shutter fabrication
You’ve done the hard work of measuring and verifying. Now it’s time to hand your measurements over to Shutter World so we can craft your bespoke shutters with precision.
Gather all your documentation before submitting. You’ll need your complete measurement sheet with all width, height, and depth figures clearly recorded. Include your window photographs showing any special features, architectural details, or obstructions. If you’ve sketched your window, add that too—it provides valuable visual context.
Shutter World maintains a secure digital submission process designed to make your experience more convenient. You can submit your measurements and photographs via our website portal or email them directly to our team. Either method ensures your information is received safely and securely.
When you submit, include the following information:
- All dimensions in millimetres for width, height, and depth
- Window shape details and type (rectangular, bay, arched, etc.)
- Photographs of your windows and any special features
- Notes about obstructions, radiators, or architectural quirks
- Your preferred shutter material and style
- Any specific design preferences or requirements
Our specialists review every submission carefully. Precise measurement submission ensures custom shutters are fabricated perfectly tailored to your windows, accounting for any variations or unusual features you’ve documented.
Once we receive your measurements, we’ll contact you within 2 business days to discuss your requirements and provide a detailed quotation. We’ll confirm that all dimensions are clear and ask any clarifying questions before production begins.
Submitting complete, accurate measurements with supporting photographs gives our craftspeople everything they need to fabricate shutters that fit flawlessly.
You’re now at the threshold of transforming your home. The measurements you’ve submitted will guide the creation of shutters engineered precisely for your windows.
Pro tip: Keep your original measurement notes and photographs safely—if you ever need to order matching shutters for another window, you’ll already have the detailed reference data your manufacturer requires.
Achieve the Perfect Shutter Fit with Expert Guidance from Shutter World
Measuring your windows accurately is the crucial first step to enjoying beautifully fitted bespoke shutters. As the article highlights, even minor inaccuracies can lead to costly mistakes, fitting issues, and delays in your project. If you have complex window shapes or are uncertain about pinpointing precise width, height, and depth measurements, you are not alone—many homeowners face these challenges when planning their shutter installation.
At Shutter World, we specialise in transforming these challenges into seamless solutions. Our expert team offers a complete, hassle-free service that includes a professional in-home survey and precise measurements to ensure your shutters fit perfectly every time. Whether your windows are rectangular, bay, arched, or uniquely shaped, we tailor your shutters to enhance your home’s aesthetic and functionality.
Ready to leave measurement worries behind and enjoy flawless window shutters crafted just for you? Explore our expert installation services and discover how our bespoke shutters can elevate your home. Visit Shutter World today to book your survey and take the first step toward a stunning and perfectly fitted shutter solution.
Frequently Asked Questions
What tools do I need for measuring windows for shutters?
You will need a steel tape measure that extends at least 5 metres, a pencil and notepad for recording measurements, and a step ladder to safely access higher windows. Gather these tools to ensure precise measurements and avoid costly errors later.
How do I identify the type of window I have before measuring?
Take a moment to recognise your window category, such as rectangular casement, bay, arched, or sash windows. Understanding your window type is crucial, as different shapes require unique measuring techniques.
What are the key measurements to take for custom shutters?
You should measure the width at the top, middle, and bottom of the window frame, as well as the height at the left, centre, and right sides. Additionally, measure the recess depth at several points to ensure a perfect fit for your bespoke shutters.
How can I ensure my measurements are accurate?
Verify your measurements by taking each dimension twice and comparing the figures. If there is any discrepancy, take a third measurement to confirm accuracy, helping to prevent errors and ensure a perfect fit.
What information should I include when submitting my shutter measurements?
Include all your width, height, and depth measurements in millimetres, details about the window shape, and any photographs of special features or obstructions. This comprehensive documentation will help create shutters that fit flawlessly.
What should I do if I encounter obstructions while measuring?
Document any obstructions, such as radiators or sloped sills, and take photographs of these features. Noting these details during measurement helps ensure your shutters accommodate all architectural elements effectively.
